What is the tensile strength of the Flexpipe joints?

When building a structure, it’s vital to ensure that each component is suited to the weight it will carry. To help you select the right metal joints, we have performed tests to accurately measure their respective weight capacity.

Does your colleague need to see this?
Share this page

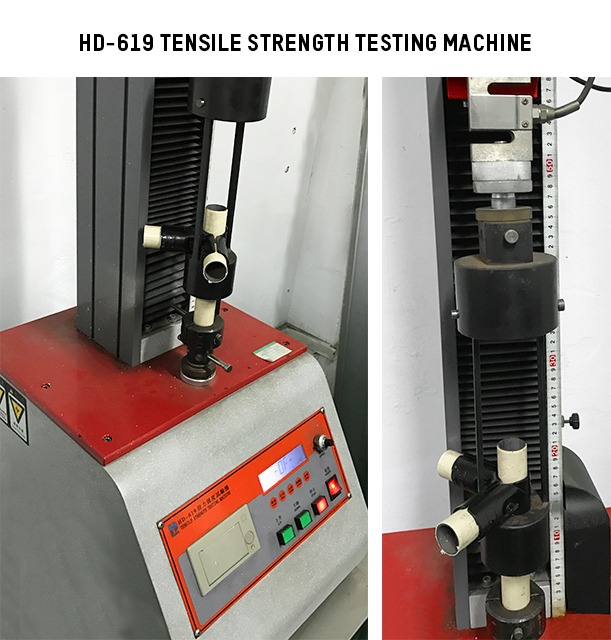

We assembled various joints and regular 1 mm pipes and tested them on an HD-619 tensile strength machine. The tests consisted of pulling on the pipes until the metal joints slipped. In this instance, the M-6 bolt torque was set to 10 Nm, and no additional self-tap screws were used.

Each joint and pipe combination is shown in the images below. Their corresponding weight capacity is in the chart, at the intersection of the joint’s part number and pipe identifier. The HD-619 machine has a tension testing limited to 440 pounds.
